Descrizione
Product Type Features

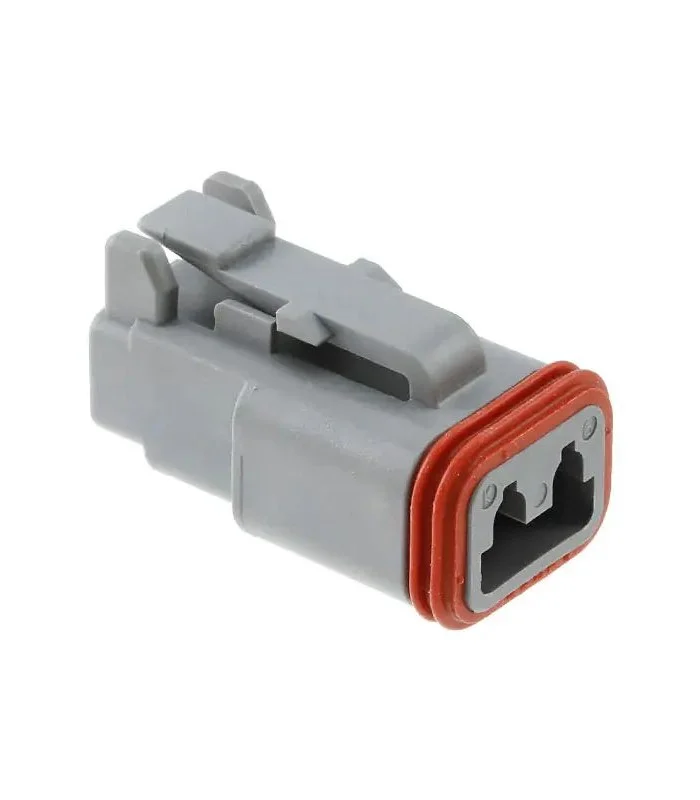

Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 125°C [ -67 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
