Descrizione

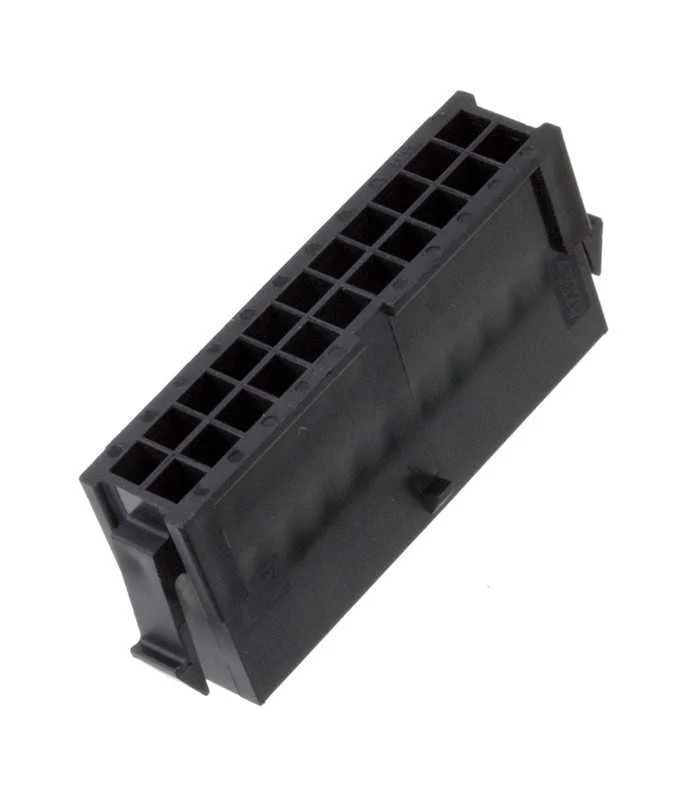

Series: Micro-Fit 3.0
No. of Positions: 22
Pitch Spacing: 3mm
For Use With: Micro-Fit 3.0 Crimp Terminals
Connector Body Material: Nylon (Polyamide)
Contact Resistance: 10mohm
Current rating: 5A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-0
Gender: Plug
Material: Nylon
No. of Rows: 2
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 250V
