Descrizione
Series: 501646
Application: Signal, Wire-to-Board

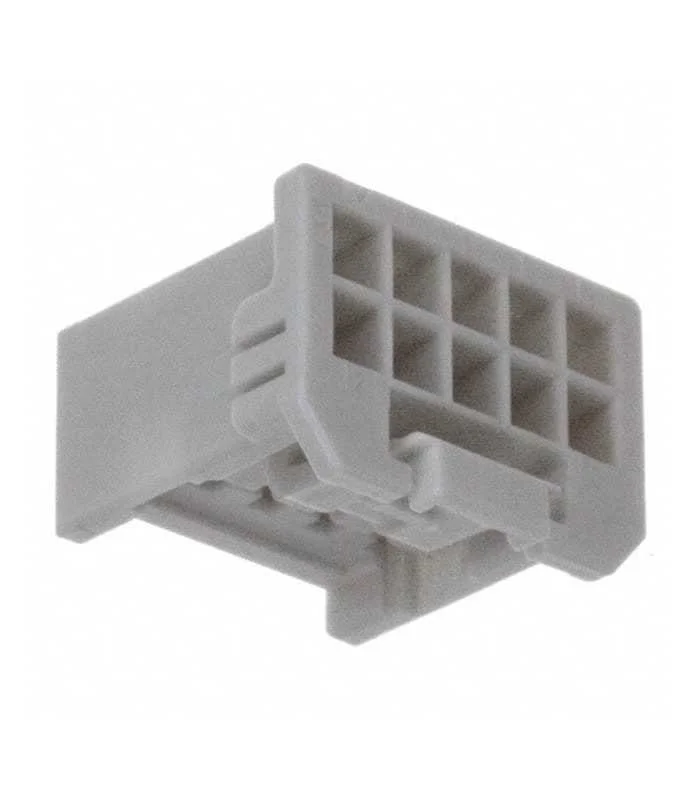

Overview: iGrid Wire-to-Board Dual-Row System
Product Name: iGrid
Circuits (maximum): 10
Color – Resin: Natural
Flammability: 94V-0
Glow-Wire Capable: No
Keying to Mating Part: None
Lock to Mating Part: Yes
Material – Resin: Nylon
Number of Rows: 2
Panel Mount: No
Pitch – Mating Interface: 2.00mm
Pitch – Termination Interface: 2.00mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range – Operating: -40° to +105°C
