Descrizione

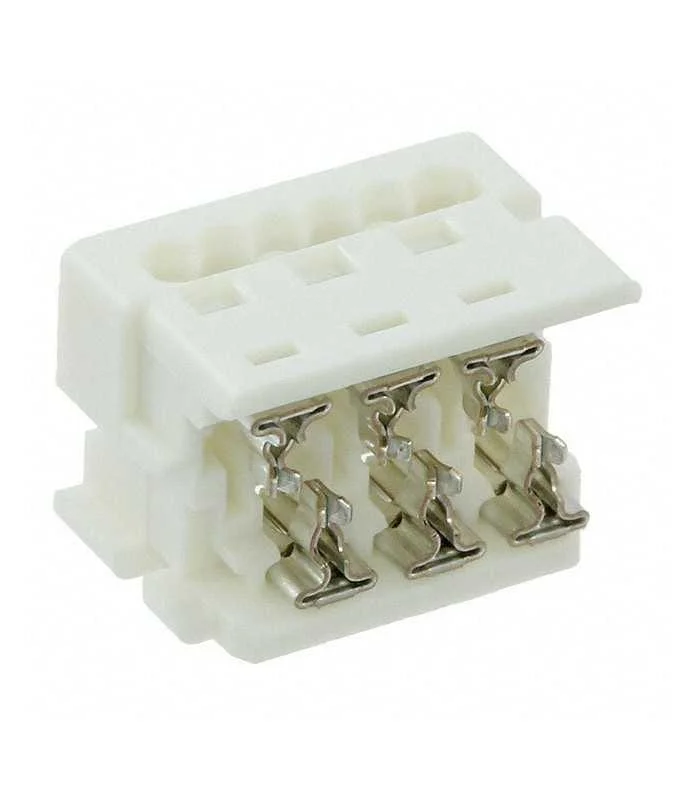

Product Range: MOLEX – Picoflex 90327 Series
Contact Termination Type: IDC / IDT
Gender: Receptacle
No. of Contacts: 6
No. of Rows: 2
Pitch Spacing: 1.27mm
Contact Plating: Tin
Contact Material: Phosphor Bronze
Colour: White
Connector Mounting Orientation: Cable
Contact Current Rating: 1.2A
Contact Resistance: 10mohm
Contact Termination: IDC / IDT
External Width: 11.43mm
Flammability Rating: UL94V-0
Lead Spacing: 2.54mm
Material: Polyester
Operating Temperature Max: 105°C
Operating Temperature Min: -25°C
Termination Method: IDT
Voltage Rating V AC: 250V
Wire Size AWG Max: 26AWG
Wire Size AWG Min: 28AWG
Withstand Voltage: 750V
