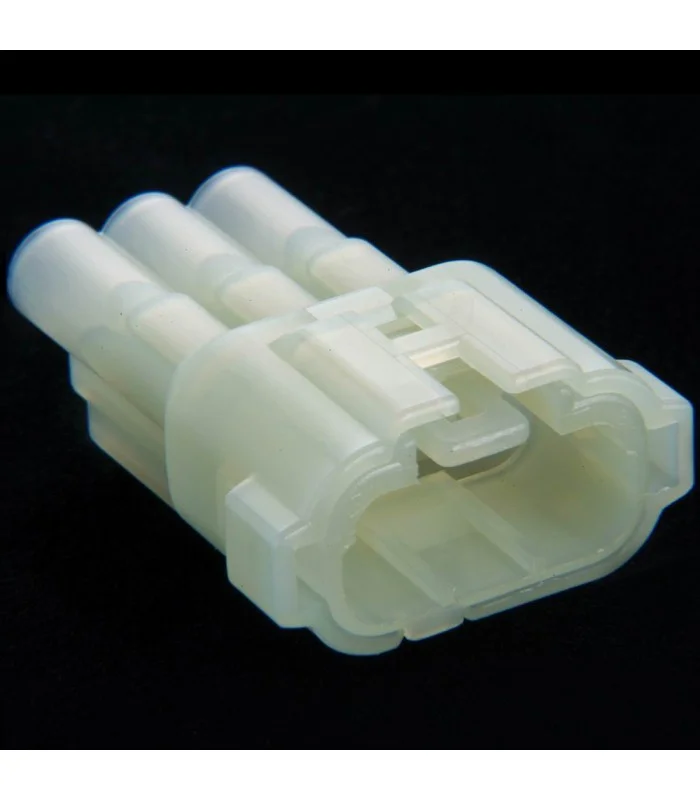

Product: Housings
Series: HM Sealed
Sealed/Unsealed: Sealed
Gender: Female
Number of Positions: 3
Number of Rows: 1
Mating parts: 6180-3451(HM sealed series)
Materials: 66 Nylon
Color: Natural
Mounting Method: Cable
Mounting Style: Wire
Contact resistance : Initial, 3mO Max. After durability tests, 10mO Max.
Leak current: 100µA Max.
Insulation resistance : 100MO Min.
Seal: Initial, 49.0kPa Min. After durability tests, 29.4kPa Min.
Note: A Type
