Descrizione

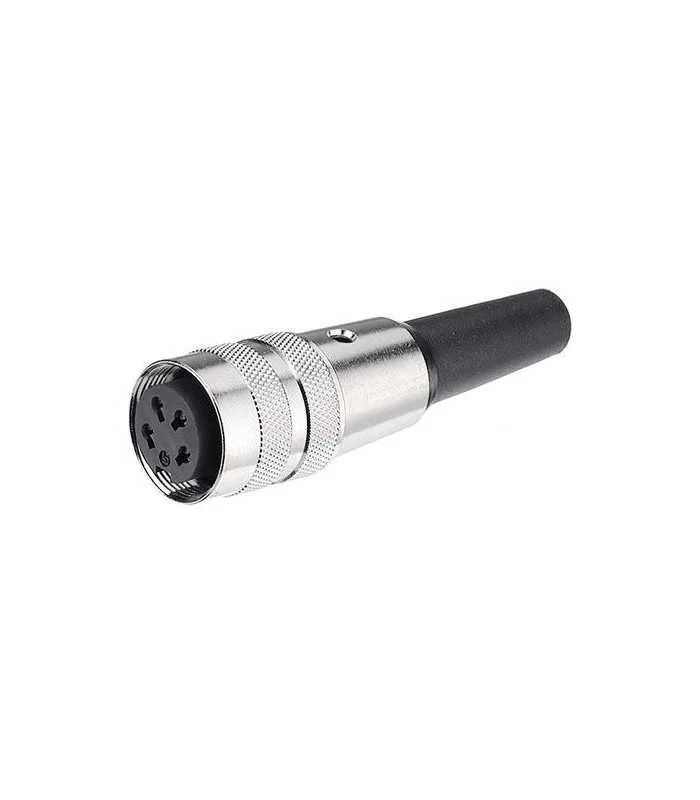

Connector Type: Circular Industrial
Series: 680
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Contacts: 6
Contact Termination Type: Solder
Contact Material: Bronze
Contact Plating: Silver
SVHC: No SVHC
Cable Diameter Max: 6mm
Cable Diameter Min: 3mm
Contact Termination: Solder
Current rating: 5A
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Wire Area Size Max: 0.75mm²
Working Voltage: 250V
