Descrizione

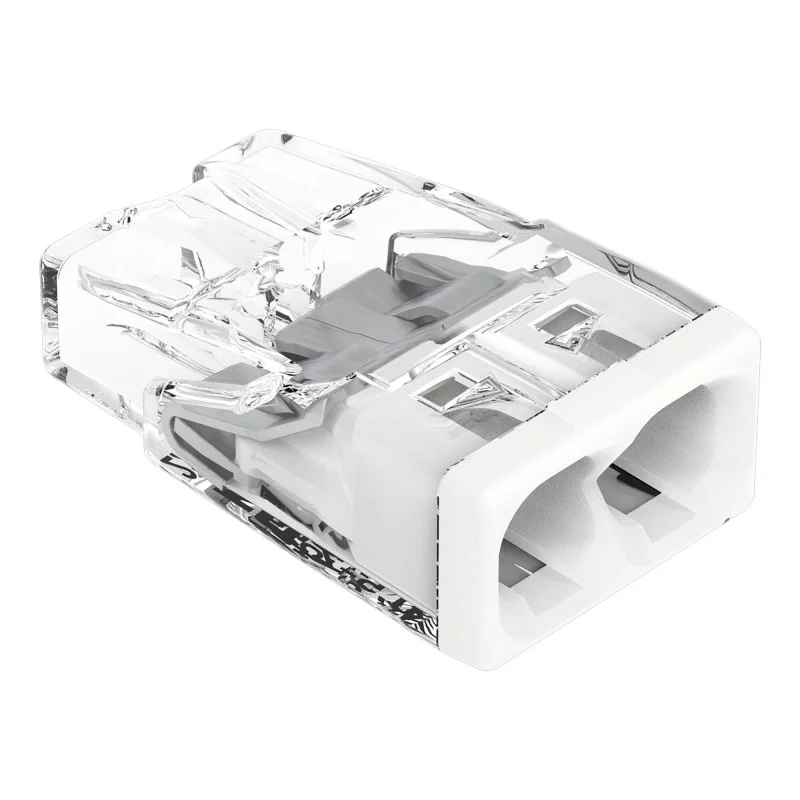

The WAGO 2273-202 installation terminal is used to connect two solid conductors by direct insertion into the contact. It is intended for electrical installation use in places where a quick, compact and clear connection of conductors without screw connections is required. Sold in 1 piece.
Technical specifications
Model: WAGO 2273-202
Connection technology type: PUSH WIRE
Number of connection points: 2
Number of potentials: 1
Designed for solid conductors
Wire cross-section range: 0.5 to 2.5 mm²
Wire stripping length: 11 mm
Connection direction: lateral
Rated voltage: 450 V
Rated current: 24 A
Design surge voltage: 4 kV
Overvoltage category: II
Pollution level: 2
Ambient air temperature during operation: up to +60 °C
Continuous operating temperature: 105 °C
Temperature designation according to EN 60998: T60
Body color: transparent
Housing color: white
Insulation material: polycarbonate (PC)
Flammability class according to UL94: V2
Contact material: electrolytic copper
Contact surface: tin
Clamping spring material: chrome-nickel spring steel (CrNi)
Dimensions: 10 x 5.8 x 16.7 mm
Weight: 0.7g
Functions and features
Screwless conductor connection by direct insertion.
Compact design for use in limited installation box space.
The transparent body allows visual inspection of the wire insertion.
The terminal is intended for connecting solid conductors.
The design supports quick assembly without the use of tools when connecting the wire.
Ideal for
Domestic and industrial electrical installations.
Connecting fixed wires in installation and junction boxes.
Repairs and modifications of fixed lines.
Installations where a compact connection of two conductors is required.
Package contents
1 pc of installation terminals WAGO 2273-202
Why choose this product?
Clearly defined number of connection points and defined range of conductor cross-sections.
Compact dimensions for installation in limited space.
Transparent design for checking correct insertion of the wire.
PUSH WIRE technology without screw connections.
Verified electrical and temperature parameters for installation use.
Installation and operating instructions
Strip the wire 11 mm before connecting.
The terminal is designed for solid conductors within the specified cross-section range.
Insert the wire directly into the terminal until it stops.
Only perform installation when the power supply is disconnected.
Safety notice
The product is intended for electrical installations and improper use may result in electric shock or short circuit.
Only perform installation on de-energized wires.
Observe the prescribed range of cross-sections and the length of wire stripping.
Do not use a damaged terminal or wires with damaged insulation.
Installation in fixed electrical installations should be carried out by a qualified person.
