Descrizione

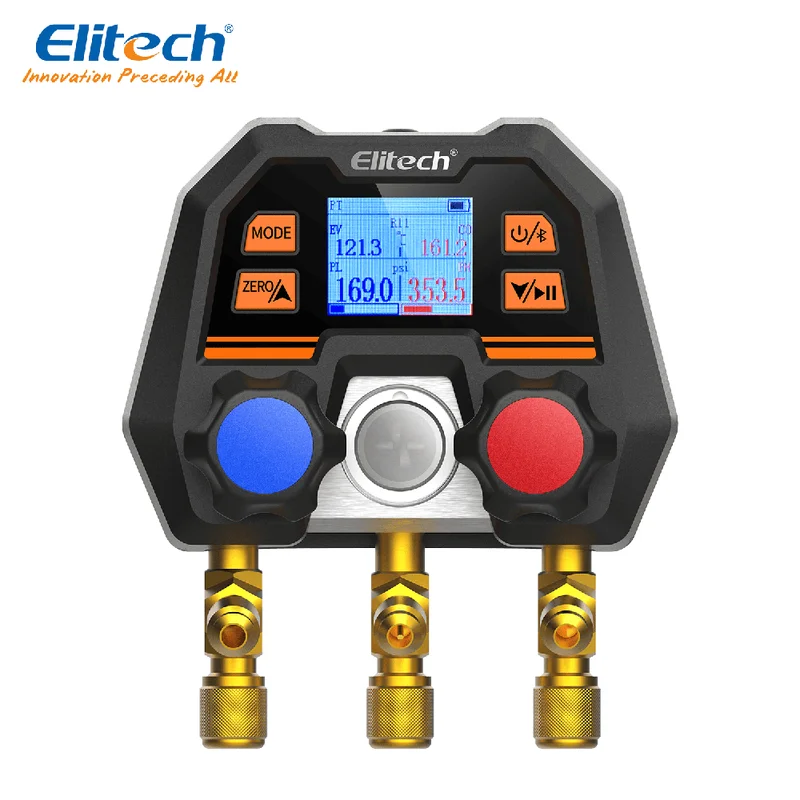

Compact 2-way digital manifold with color display and App Elitech MS-100plus Description:
The Elitech MS-100plus digital manifold is a compact and advanced HVAC/R instrument designed for refrigeration and air conditioning technicians and professionals. It combines pressure, temperature and vacuum measurement functions in a single digital device with a high-definition color display and Bluetooth connectivity for a dedicated App. Thanks to the refrigerant library updated through the App and the possibility of firmware updates (OTA), the MS-100plus ensures accurate measurements, ease of use and full compatibility with modern system diagnostics and maintenance needs.
Features:
2-way digital manifold for HVAC/R systems.
High-definition color display for clear and intuitive readings.
Bluetooth connectivity with mobile App for configuration, data viewing and updates.
Support for over 140 refrigerants updatable via App.
Multiple functions included: pressure measurement, vacuum mode, pressure holding and more.
Superheat and subcooling calculation through the App.
OTA (Over-The-Air) firmware update directly via App to always keep the device up to date.
Compact and robust design, ideal for professional jobsite use.
Technical specifications:
Valve type: 2-way.
Pressure measurement range: -14.7 ~ 800 psi.
Pressure accuracy: ± 0.5 %FS.
Pressure resolution: 0.5 psi.
Supported pressure units: psi, kg/cm², kPa, MPa, bar, inHg.
Temperature units: / .
Supported refrigerants: over 140, updatable via App.
Superheat / subcooling calculation: through the App.
Temperature compensation: yes.
Vacuum measurement: yes.
Connections: 1/4 SAE × 3; 1/4 SAE core valve.
Environmental protection: IP54.
Power supply: 2 × 1.5 V AAA batteries.
Operating time: up to 100 h in low-power mode.
Working temperature: -10 °C ~ +50 °C.
Storage temperature: -20 °C ~ +60 °C.
Dimensions: 110 × 75 × 135 mm.
Weight: approx. 700 g.
Product code: MS-100plus
