Descrizione

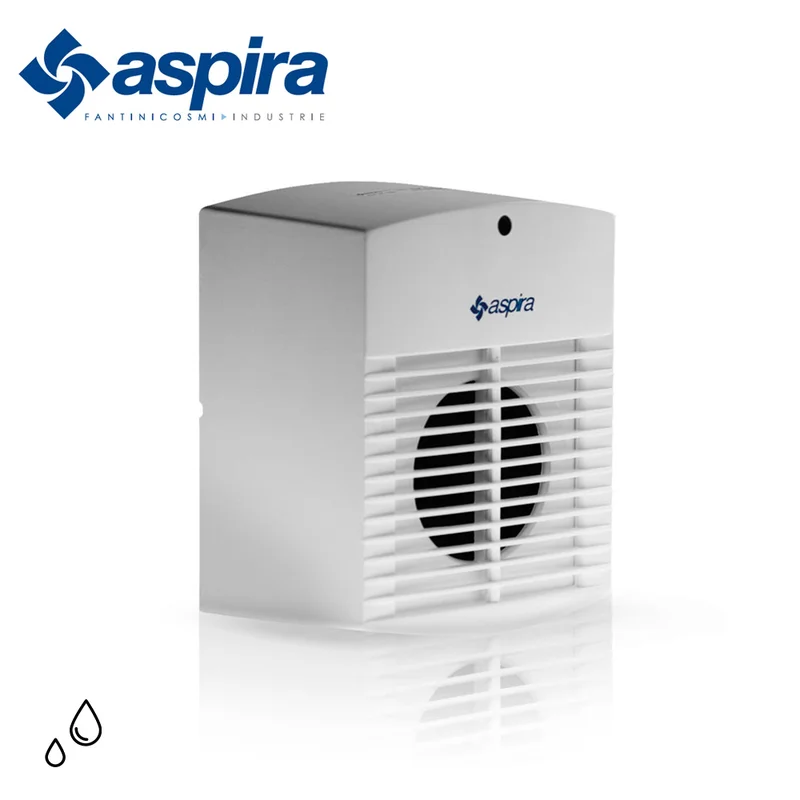

Centrifugal fan for duct expulsion with timer for delayed shutdown and automatic humidity control
DESCRIPTION:
Centrifugal fans designed for air expulsion through ducts and wall or ceiling installation, standard model.
The compact and attractive design, performance, and quiet operation, along with the practical snap-in front panel and the anti-tear power cord system, make the AC100 line products extremely simple and quick to install.
The 80 mm diameter wall centering makes these products even more versatile in application. The butterfly valve prevents smoke and/or odors from returning to the room, and the solid particle filter, such as grease and dust, are important components of these high-quality products.
With automatic humidity control HTT:
The fan activates when the relative humidity (RH) in the room exceeds the preset activation point and continues to operate until the RH value falls below the preset threshold. Upon reaching this threshold, the TIMER function allows the fan to continue operating for a programmable period of 45 seconds to about 30 minutes to further reduce the relative humidity in the room. The relative humidity RH can be adjusted from a minimum of 40% RH to a maximum of 80% RH. This fan can also be used manually in TIMER mode.
FEATURES:
Discharge hole Ø80 mm.
Adapter ring for discharge holes Ø100 mm and Ø120 mm included.
Made of impact-resistant and heat-resistant plastic (ABS).
Induction motor – Class Is. B – 2100 rpm with self-lubricating bearings.
Motor protection via thermal fuse.
Operating indicator light.
2 protective filters included.
Product code: AP1487
