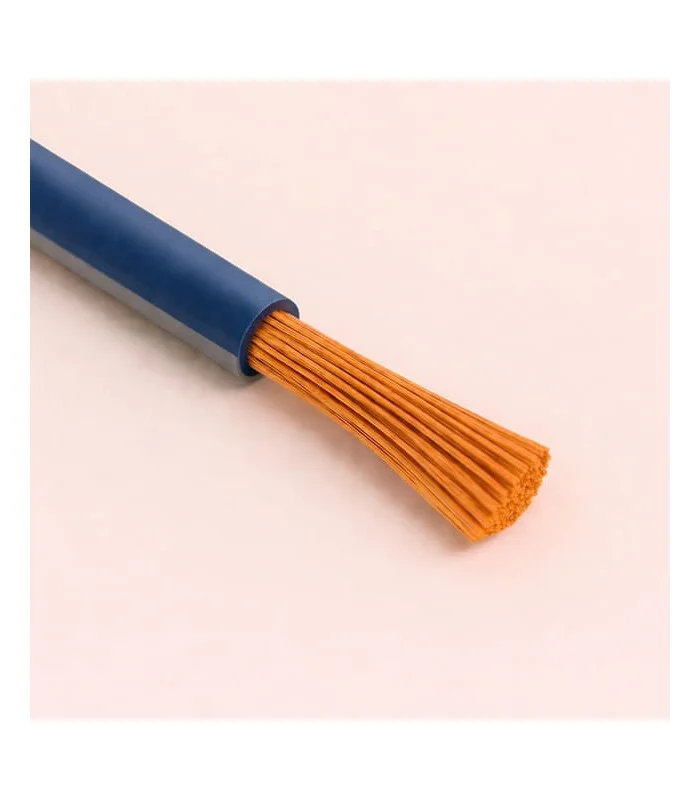

Conductor: Flexible bare.
Insulation: PVC.
Conductors identification: According to DIN 47100.
External sheath: PVC fire retardant, color gray RAL 7001.
Nominal voltage: mm2 Section 0:14 (150V) – Other sections (250V).
Test voltage: 1200V.
Insulation resistance: 200MO min.
Operating Temperature: -10 ° C to 80 ° C.
Bend Radius: 12 x D.
Reference standards: IEC 332.3, IEC 228, CEI 20-22, CEI 20-29 cl.5, VDE 0812, DIN 47100
