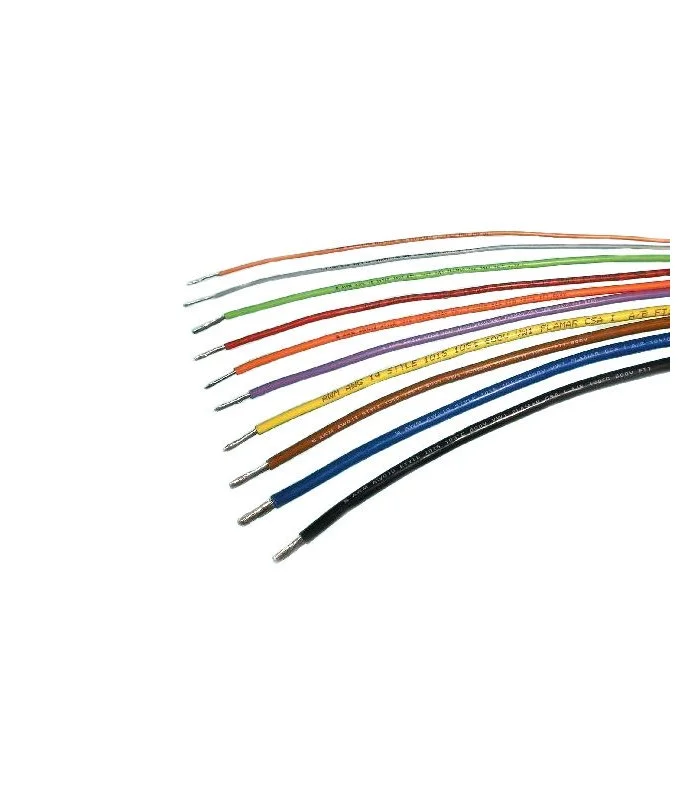

Cavo filo unipolare UL Style 1007 AWG 26 Verde-Spedizione veloce

Descrizione

Tinned Copper
Rated voltage: 300 V
Test voltage: 3000 V
Spark test (Test voltage):
AWG 28 – 20: 4 kV
AWG 18 – 10: 5 kV
Core insulation:
PVC mixture acc. to UL: VW-1
CSA: FT 1
Insulation resistance:
min. 20 MOhm X km
Approvals:
AWG 32 – 16: UL style 1007 (300 V/80°C)
CSA TR 64 (300V/90°C)
Temperature range:
UL-Style 1007 : -40°C to + 80°C
CSA TR 64: -40°C to + 90°C
