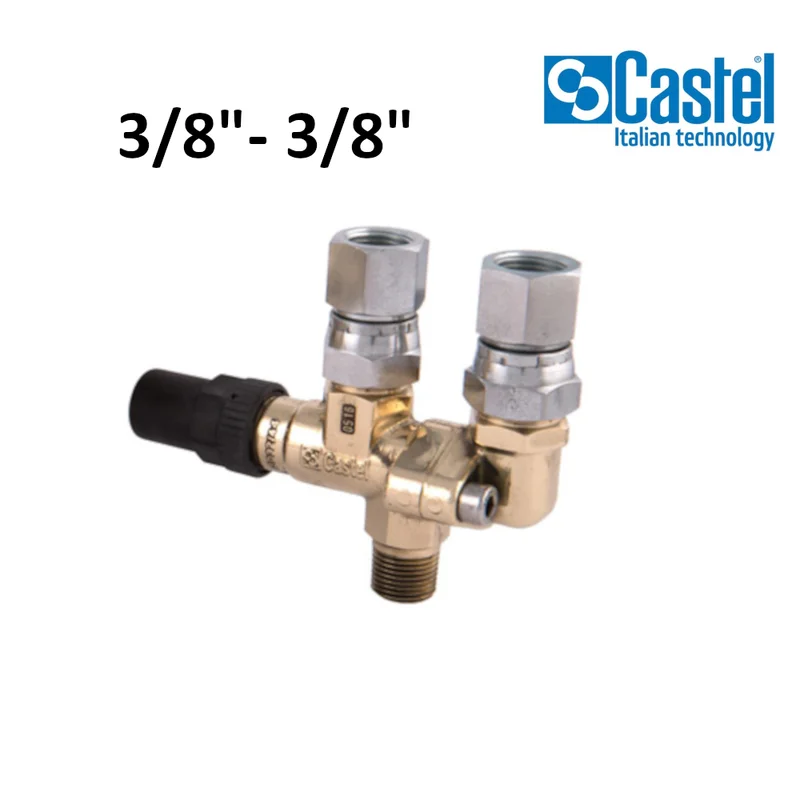

3032/33 – Castel – Changeover Valve for Refrigerant Gas Safety Valve
Threaded IN 3/8 NPT OUT 3/8 NPT
Description:
The 3032 series changeover valves serve as service valves for a pair of safety valves, allowing simultaneous use of one while excluding the other. This device enables users to service the excluded valve for periodic checks or replacement while maintaining full system operation and the integrity of the safety systems. Accessories suitable for use with the following refrigerants, classified as A1 according to ASHRAE 34: 2019:
HCFC (R22)
HFC (R134a, R404A, R407C, R410A, R507)
HFO (R1234ze)
HFO + HFC (R448A, R449A, R450A, R452A, R513A, R515A, R515B)
Product Details:
Supplied Fittings: 3039/3
IN Connections: 3/8″ NPT
OUT Connections: 3/8″ NPT
Kv [m³/h]: 2.5
PS [bar]: 80
MWP [psi] (1): 1015
TS [°C] min.: -40
TS [°C] max.: +120
Product Code: 3032/33
