C800WIFIPRO – Electronic LED Thermostat with Smart Functions. Complete with power kit and rectangular and square bases – WiFi-Spedizione veloce

Descrizione

LED THERMOSTAT WITH SMART FUNCTIONS
FANTINI COSMI C800WIFIPRO WALL-MOUNTED
COMPLETE WITH POWER KIT AND RECTANGULAR AND SQUARE BASES
WiFi / BATTERY-POWERED

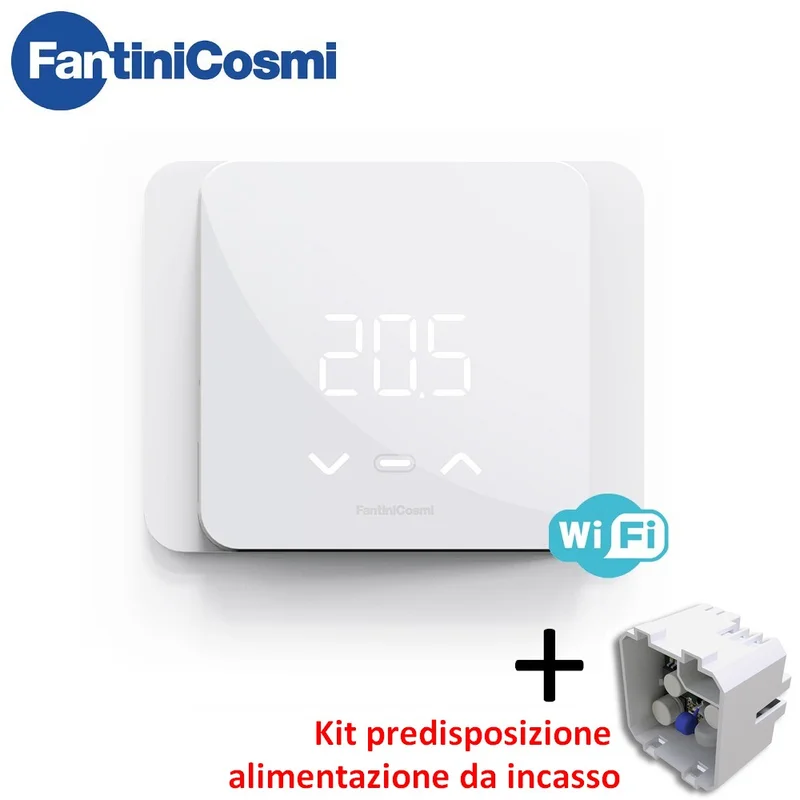

Electronic LED thermostat with smart functions complete with power kit and rectangular and square bases
Ideal for controlling heating and cooling systems
Wall-mounted or recessed installation in 500/502 or 503 boxes
WiFi connection for programming and management via the Intelliclima+ APP
Voice control directly through the Intelliclima+ App or with Google Home TM or Amazon Alexa TM.
Advantages
The C800WIFI is a “smart” thermostat for an innovative approach to environmental comfort management. By continuously monitoring environmental temperature and humidity parameters (which detect perceived temperature) and processing data through Artificial Intelligence algorithms, the system combines all the information needed to optimize the use of heating and cooling systems, anticipating or delaying activation based on usage habits and advanced user geolocation to provide the best comfort conditions with the lowest energy consumption. This new approach to advanced temperature control, called “AGC-Adaptive Gain Control,” results in a reduction in primary energy demand, which can be verified and reviewed by users through the infographic sections of the Intelliclima+ App, showing savings data in kW/year, CO2 reduction, and the equivalent of “trees planted.”
General characteristics

WiFi 2.4 GHz connection (802.11 b/g/n)

Router communication port: 1080

Maximum transmitted radio frequency power < 10Mw

Regulation differential 0.3 ÷ 5 K

Reference thermal gradient 4 K/h

Temperature regulation range 2 ÷ 40 °C, increment 0.1°C

Ambient temperature measurement/display range 50 ÷ + 50 °C

Maximum ambient temperature 45°C

Ambient relative humidity display range 0 ÷ 99 %, increment 1 %

Storage temperature -10°C ÷ +60°C

Protection degree IP32

Pollution degree 2

Electrical characteristics

Power supply 2 AA 1.5 V batteries or 230Vca/3.3 Vdc @1500mA Max (via C800AL)

Maximum power consumption 5 W

Contact capacity 5(3)A 250 Vca

Type of action 1 B.U. (Micro disconnection)

Output type: 1 relay for heating/cooling (3 screw terminals, closed + open)

Software Class A

Electrical insulation: double insulation

Impulse voltage 4000V

Product code: C800WIFIPRO
