Descrizione

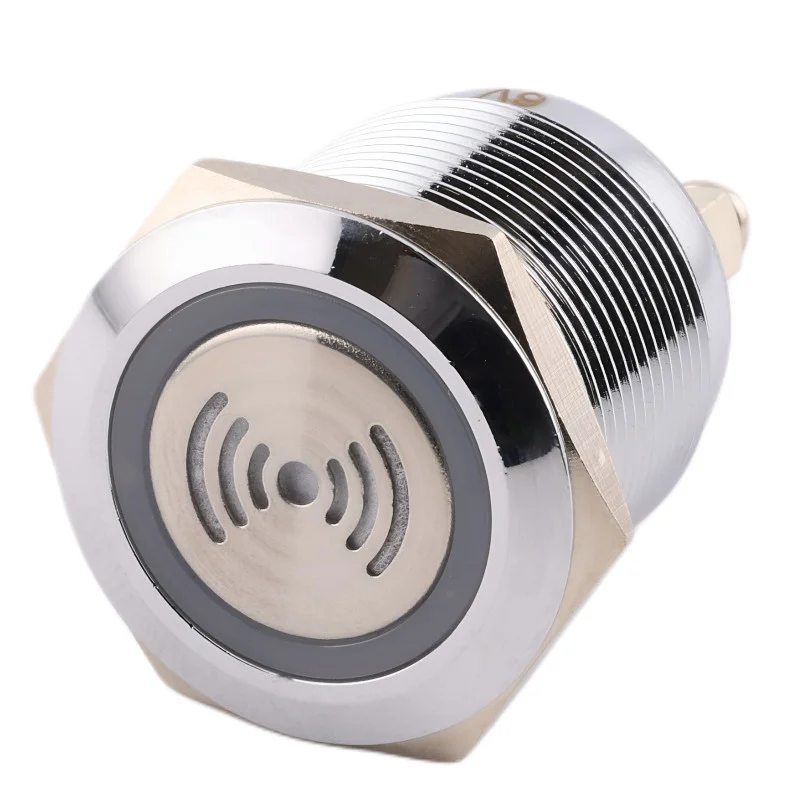

Metal buzzer with integrated LED indicator in 22 mm mounting hole design and IP66 protection is designed for reliable acoustic and optical signaling in demanding industrial conditions. The robust stainless steel body provides high mechanical resistance and long service life, while the intermittent sound tone together with LED indication provides clear and immediate notification of the device status even in noisy operation.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 230 V AC (depending on the selected variant)
Maximum current: 20 mA
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
LED color: red
Front diameter: 25 mm
Total length: 35 mm
Mounting hole diameter: 22 mm
Thread: M22 × 1
Weight: 55g
Body material: stainless steel
Protection: IP66
Operating temperature: 25 °C to +80 °C
Terminals: screw terminal block
Functions and features
Combination of acoustic and optical signaling in one element
All-metal design made of stainless steel with high mechanical resistance
Intermittent audible tone for a clear warning signal
LED indicator for clear and quick visual status indication
High resistance to dust and strong jets of water
Stable fastening with M22 × 1 thread
Easy panel mounting using a Ø 22 mm hole
Ideal for
Industrial switchboards and control panels
Machinery exposed to moisture, dust and washdown
Warning and fault signaling
Automation and control systems
Tough industrial and outdoor applications
Package contents
Metal buzzer with LED indicator
Why choose this product?
High IP66 protection for demanding operating conditions
Durable stainless steel design with long service life
Reliable light and sound signaling
Standard mounting hole Ø 22 mm
Professional solutions for industrial use
