Descrizione

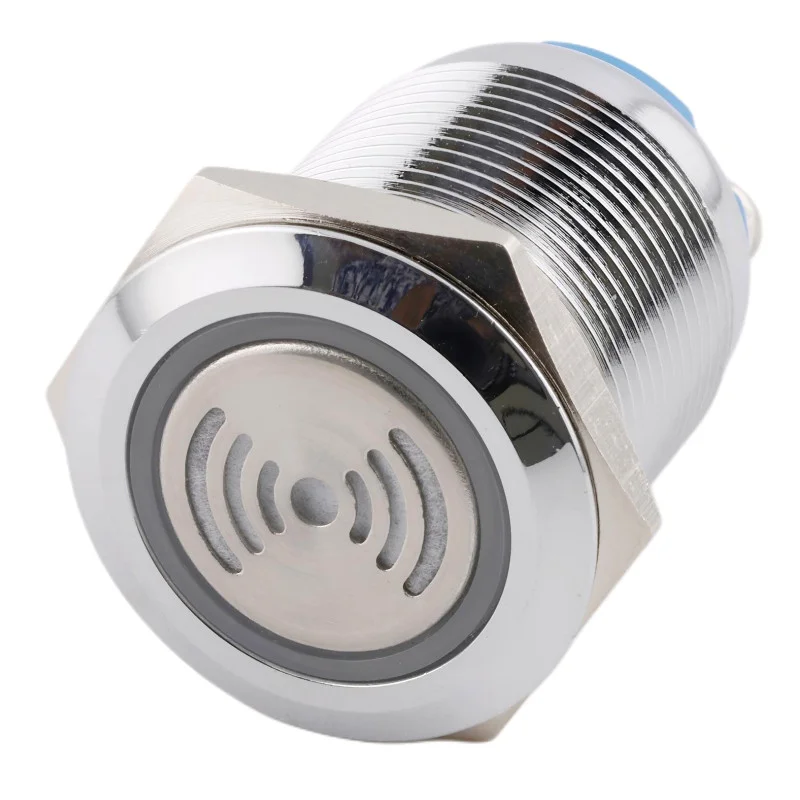

Metal buzzer with integrated LED indicator in 19 mm mounting hole design and high IP66 protection is designed for reliable acoustic and optical signaling in demanding industrial conditions. The robust stainless steel body ensures high mechanical resistance and long service life, while the intermittent sound tone in combination with LED signaling allows immediate recognition of warning and operating states.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 230 V AC (depending on the selected variant)
Maximum current: 20 mA
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
LED color: red
Front diameter: 22 mm
Total length: 32 mm
Mounting hole diameter: 19 mm
Thread: M19 × 1
Weight: 48g
Body material: stainless steel
Protection: IP66
Operating temperature: 25 °C to +80 °C
Terminals: screw terminal block
Functions and features
Combination of acoustic and optical signaling in one element
All-metal design made of stainless steel with high durability
Intermittent audible tone for a clear warning signal
LED indicator for clear visual status indication
High protection against dust and powerful jets of water
Stable fastening with M19 × 1 thread
Easy panel mounting using a Ø 19 mm hole
Ideal for
Industrial switchboards and control panels
Machinery exposed to moisture and dirt
Manufacturing and food processing operations with frequent rinsing
Automation and control systems
Tough industrial and outdoor applications
Package contents
Metal buzzer with LED indicator
Why choose this product?
High IP66 protection for demanding operating conditions
Durable stainless steel design with long service life
Reliable combination of light and sound signaling
Standard mounting hole Ø 19 mm
Professional solutions for industrial use
