Descrizione

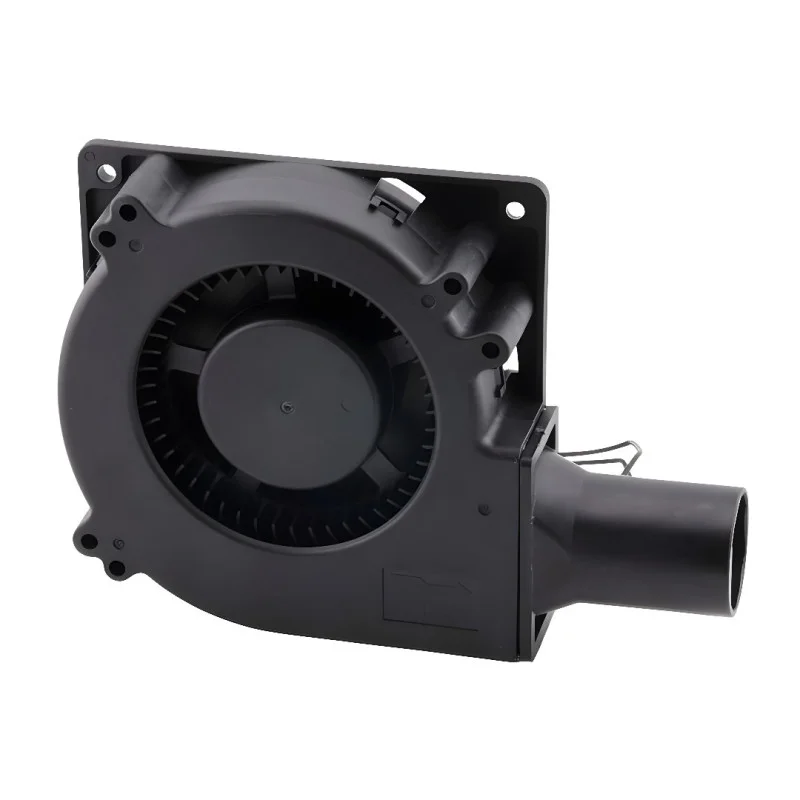

High-performance blower fan with EC brushless motor and integrated outlet pipe for targeted air extraction. The design is designed for applications where it is necessary to direct the air flow into a pipe, duct or specific space. The fan is designed for continuous operation in industrial, technical and electronic equipment.
Technical specifications
Fan type: blower with outlet pipe
Motor: EC brushless
Supply voltage: 80-240V AC
Frequency: 50/60Hz
Power consumption: 4 W
Speed: 2200 rpm (±10%)
Airflow: 24.6 CFM
Static pressure: 0.62 in HO
Noise level: 42 dBA
Bearings: Dual Ball Bearing
Lifespan: 50,000 hours at 25°C
Body dimensions: 120 × 120 × 32 mm
Outer tube diameter: 32.5mm
Connection: 2 wires
Power cable length: 300 mm
Housing material: heat-resistant plastic
Weight: 213g
Protection: IP20
Functions and features
Integrated outlet pipe for directed air extraction
EC motor with high efficiency and low consumption
Double ball bearings for long life
Stable speed during voltage fluctuations
Suitable for permanent and continuous operation
Compact design with high static pressure
Ideal for
Switchboards and electrical cabinets
Inverters and power supplies
Servers and network devices
Cooling and ventilation systems
Heaters, controllers and industrial electronics
Devices requiring targeted hot air extraction
Package contents
1× EC blower fan 120×120×32 mm with outlet pipe
Why choose this product?
Directional airflow thanks to the outlet pipe
Long life and minimal maintenance
High reliability in continuous operation
Wide supply voltage range 110-240 V AC
Compact dimensions suitable even for confined spaces
