Descrizione

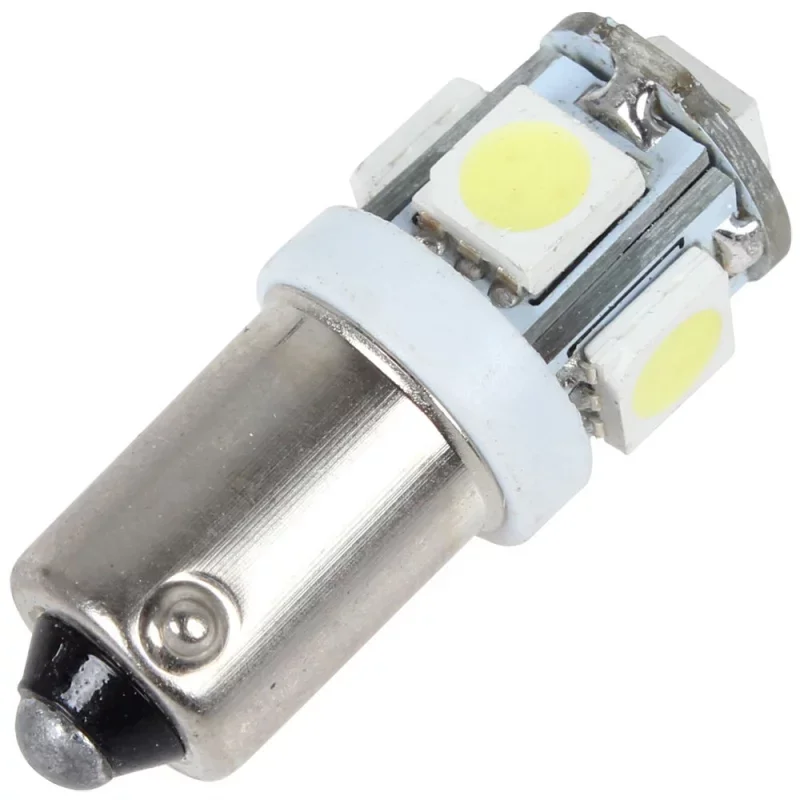

The LED bulb with BAX9S base is designed for lighting applications requiring a compact design and white light color. The design with multiple SMD LED chips ensures multi-directional emission, which is suitable for use in instrument, signaling or auxiliary lighting. The product is available in 6 V and 12 V DC versions.
Technical specifications
Socket: BAX9S
Light color: white
LED type: 5050 SMD
Number of LEDs: 5
Supply voltage: 6 V DC or 12 V DC depending on the selected variant
Beam angle: 360°
Protection: IP22
Lifespan: 50,000 hours
Functions and features
Equipped with five SMD LED chips.
Version with BAX9S base for installation in a corresponding socket.
White light for lighting and signaling use.
Design supporting a wide beam angle.
Available in two voltage options for different DC systems.
Ideal for
Luminaires and signaling points with BAX9S base.
Low voltage applications at 6 V DC.
Low voltage applications at 12 V DC.
Auxiliary, instrument and indicator lighting.
Package contents
1 pc. BAX9S LED bulb, 6 or 12 V depending on the selected variant
Why choose this product?
The clearly designated BAX9S socket makes it easy to select a compatible replacement power supply.
The choice between 6 V and 12 V allows use in corresponding electrical systems.
Multidirectional radiation is suitable where light distribution in multiple directions is required.
The LED design with 5050 SMD chips offers a filament-free design.
Installation and operating instructions
Before installation, verify the correct BAX9S socket type and select the corresponding voltage variant 6 V or 12 V DC.
Only install the bulb in a socket designed for the given type of socket.
Disconnect power before replacing.
Do not use the bulb in a circuit with a voltage other than that for which the selected variant is intended.
Safety notice
An incorrectly selected voltage option can lead to damage to the bulb or electrical installation.
Avoid shorting the contacts during assembly.
Only use the product in an environment that meets IP22 protection.
Do not install or use a damaged product.
