Descrizione

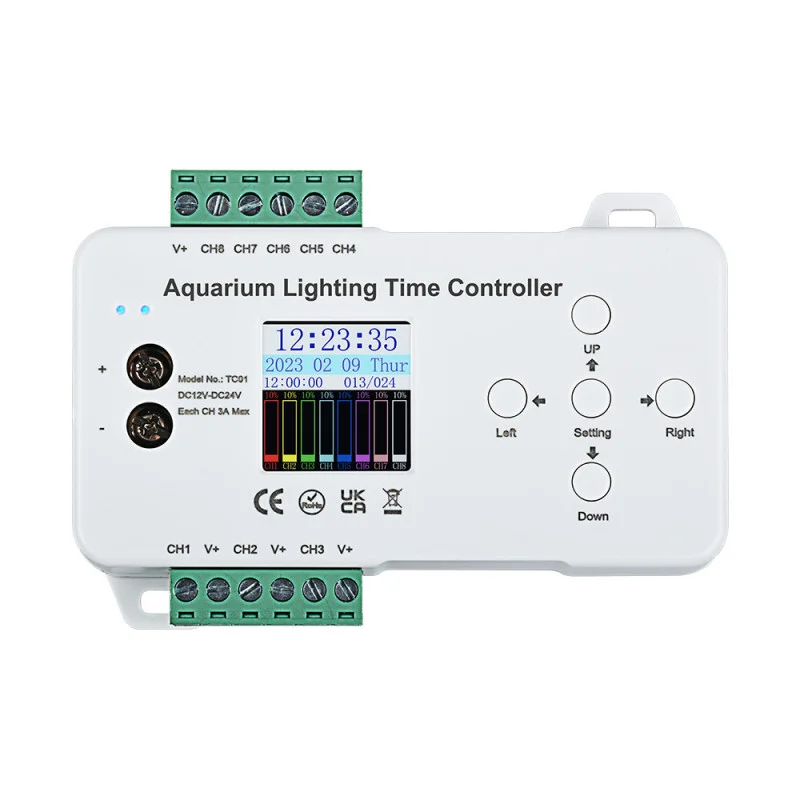

The AQ-TC01 programmable time controller is designed for intelligent control of aquarium LED lighting. It allows for simulation of the natural daily cycle, smooth dimming and lighting of individual light circuits and automatic changes of light scenes within 24 hours. Thanks to eight independent output channels, it provides high flexibility in controlling various types of LED lights in aquariums and other decorative applications.
Technical specifications
Model: AQ-TC01
Supply voltage: 12-24 V DC
Number of output channels: 8
Maximum current per channel: 3 A
Total maximum power: 240 W
Recommended load power: 120-240 W
Load type: LED lighting 12-24 V DC (constant voltage)
Control: time programs, manual buttons
Housing material: ABS plastic
Color: white
Dimensions: 105 × 72 mm
Power supply: DC
Weight: 145g
Protection: IP20
Functions and features
Day cycle simulation (dawn, day, dusk, night)
24-hour time program with multiple lighting modes
Continuous dimming and brightness control of individual channels
8 independently controlled outputs for different LED circuits
Clear LCD display with current time and channel status
Control via integrated buttons
Possibility of configuring and uploading programs using a USB drive
Support for time synchronization and quick upload of settings
Ideal for
Aquarium LED lighting control
Simulating natural light conditions for fish and plants
DIY LED projects with time control
Decorative and thematic lighting with multiple light channels
Package contents
1× aquarium time LED controller AQ-TC01
1× USB drive with configuration software
1× USB Type-C cable
Mounting and connection accessories
Why choose this product?
Precise and automatic lighting control without the need for manual intervention
High flexibility thanks to 8 channels and individual settings
Smooth light transitions that are gentle on animals and plants
Easy configuration and intuitive operation
Reliable solution for long-term operation of aquarium lighting
