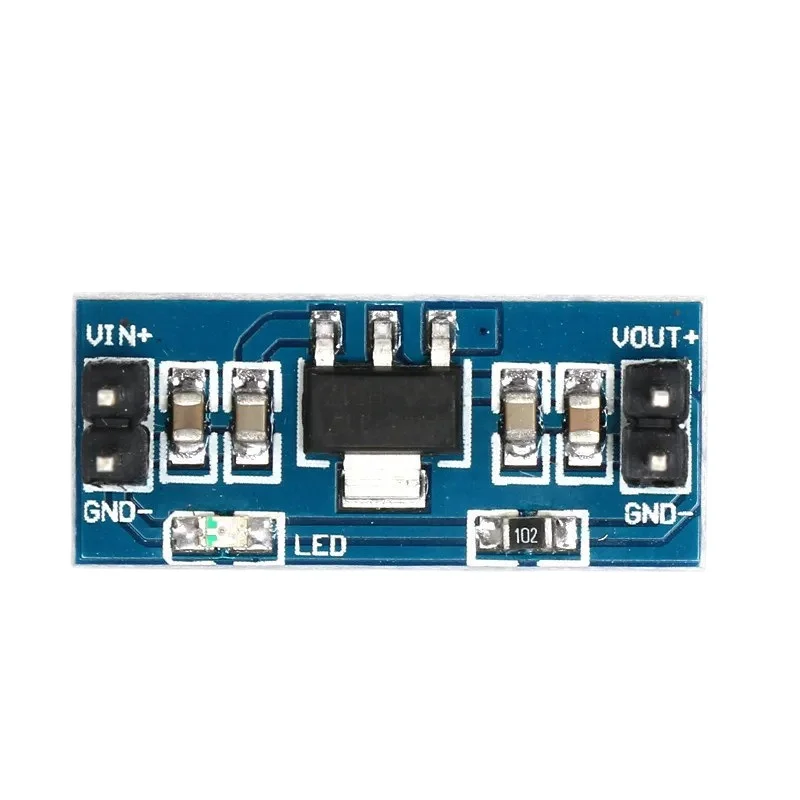

The compact module with the AMS1117 regulator is used to stabilize voltage in projects with microcontrollers such as Arduino or Raspberry Pi. It allows you to easily reduce the input voltage to fixed output values (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V or 5 V). Ideal for powering logic circuits, sensors or other low-voltage components.
Technical specifications
Input voltage: DC (Vout + 1.45 V) to 12 V (e.g. for 5 V output, min. 6.5 V at the input is required)
Output voltage: 1.2 V / 1.5 V / 1.8 V / 2.5 V / 3.3 V / 5 V (depending on version)
Maximum output current: 800 mA
PCB dimensions: 25 × 11 mm
Mounting: 2 mounting holes for fixed mounting on the board
Connectors: 2P single row pins for easy wiring (input and output)
Power indication: LED indicator (red)
Functions and features
Stabilizes voltage and protects sensitive components from surges
High efficiency and low losses when powered from higher voltage
Compact dimensions suitable for installation in small projects
Compatible with Arduino, ESP8266, Raspberry Pi and other microcontrollers
Ideal for
Power supply for low-voltage sensors and modules
DIY projects and electronics development
Voltage stabilization from batteries or adapters
Laboratory and school electronics projects
Package contents
1 × DC-DC module AMS1117 (depending on the selected version)
Why choose this product?
Reliable and proven voltage stabilizer AMS1117
Easy to use in breadboards and soldered prototype boards
Available in several voltage options for different purposes
Excellent price/performance ratio for amateur and professional projects
