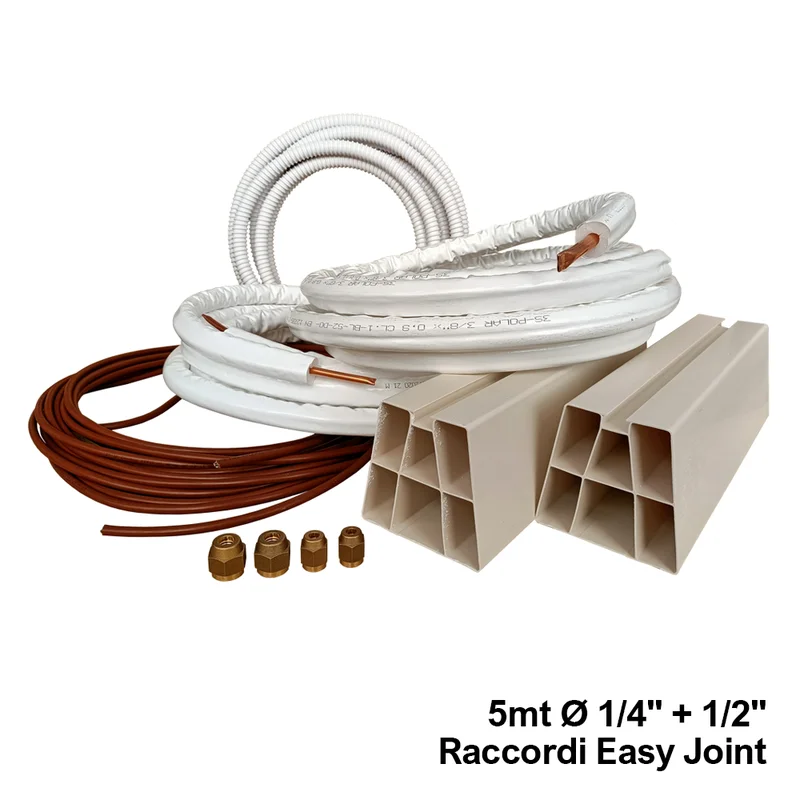

MONOSPLIT AIR CONDITIONER INSTALLATION KIT
5 m of 6.35 mm (1/4″) pre-insulated copper tubing
2 6.35 mm (1/4″) self-flashing fittings
5 m of 12.7 mm (1/2″) pre-insulated copper tubing
2 12.7 mm (1/2″) self-flashing fittings
5 m of condensate drain pipe
5 m of 4 x 1.5 mm² four-conductor cable
1 pair of mounting brackets for outdoor units
COPPER PIPE SPECIFICATIONS:
ACR (R220) annealed, mechanical properties, dimensions, tolerances, and eccentricity conform to UNI EN 12735-1.
Compatible with R407C and R410A refrigerants, internal cleaning and dehumidification with an inert gas with a maximum total residue of 0.034 g/m², and sealed ends in accordance with ASTM B280.
Insulating Sleeve
Physically cross-linked, closed-cell expanded polyethylene insulating sleeve with the following technical characteristics:
Thermal conductivity at 40°C: 0.040 W/m*K
Water vapor diffusion coefficient (anti-condensation): 10,000
Fire rating: Class 1
Operating temperature range: -80°C to +120°C
CFC-free
External film made of white extruded polyethylene (LDPE) with a flame-retardant additive, bonded to the foam to ensure high anti-condensation performance and excellent resistance to abrasion and tearing.
FEATURES OF EXTERNAL SUPPORTS/BASE PLATES:
The floor supports are made of rigid, impact-resistant PVC, withstand high temperatures, and allow for quick installation while maintaining an excellent aesthetic appearance. Suitable for all air conditioner models, these fittings support a load of 140 kg. Their unique honeycomb structure dampens vibrations and facilitates quick installation. They are equipped with galvanized bolts and nuts for attachment to the condensing unit.
SELF-FLAVING FITTING FEATURES:
The metal seal and working pressure of up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems using next-generation, low-environmental-impact refrigerants, for connecting pipes, valves, tanks, and piping components in general.
The clamping ring acts like a vise on the outer surface of the pipe, resisting pressure and ensuring an effective seal.
Features:
Fluid temperature: -40°C to +150°C
Maximum operating pressure: 140 bar
Compatible with standard 45° flared fittings
No pipe end calibration or flaring is required, and no torque wrench tightening is necessary. Approvals:
CE (PED, RoHS, REACH), EAC
Performance exceeds the requirements of DIN 8912 and SAE J513 standards for standard 45° flared fittings.
Patented system.
CONDENSER DRAIN PIPE SPECIFICATIONS:
Recessed or ducted installation.
UV-resistant HDPE.
ELECTRICAL CABLE SPECIFICATIONS:
Four-conductor cable for 220V single-phase power supply to the air conditioning unit.
Product code: KIB.5.1/4-1/2
