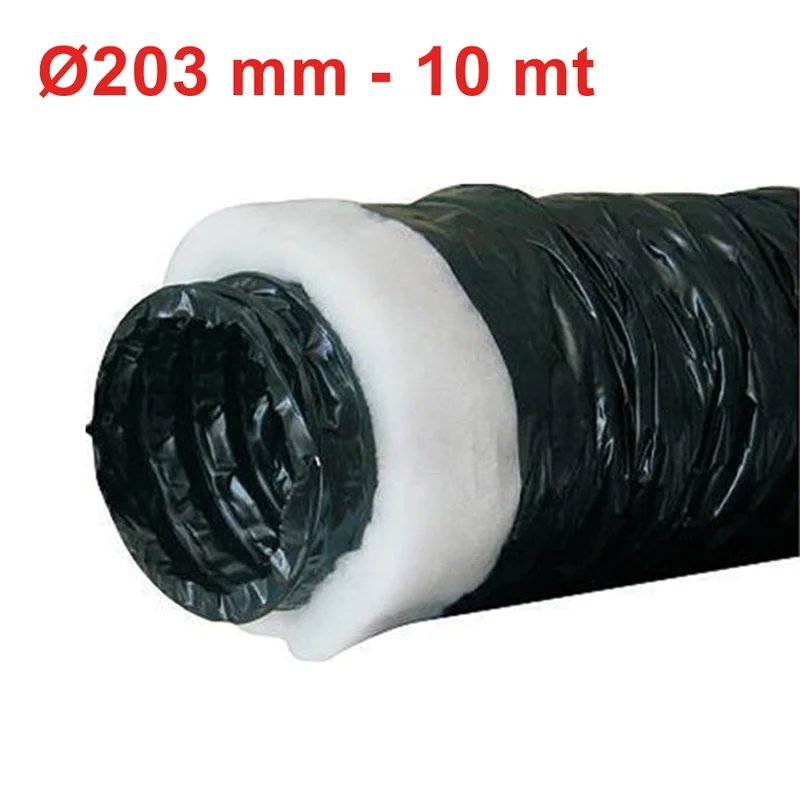

CDTPLTI.203 – FLEXIBLE ANTI-TEAR POLYETHYLENE DUCT WITH 25mm POLYESTER INSULATION
Ø 203 mm – 10 m roll
Features:
Black polyethylene duct with embedded harmonic steel spiral
Polyester insulation with 16 kg/m³ density and 25 mm thickness
Outer duct in black polyethylene
Fire reaction class 1 (D.M. 26/06/84 art. 8)
Certification number CSI/0132/08/RF
Approval PD2229C20D100010
Diameter 203 mm
10 m roll packaging
Operating temperature from -20 °C to +70 °C
Maximum air velocity 30 m/s
Maximum operating pressure 2,000 Pa
F10 THERM
Flexible duct made of polyolefin resin film (wall thickness 100 microns) and harmonic steel wire spiral. Thermal insulation in polyester fiber (25 mm / 16 kg/m³). Outer vapor-resistant coating in polyolefin resin.
Insulation:
25 mm / 16 kg/m³ standard
50 mm / 16 kg/m³ on request
Thermal Resistance at 20°C
R = 0.58 m² K/W (UNI EN 12664:2002)
SPECIFICATIONS
COLOR: Black
LENGTHS: 10 m standard
PRODUCTION DIAMETERS: from 80 to 406 mm
OPERATING TEMPERATURE: -20°C /+90°C (+110°C peaks)
BENDING RADIUS: 0.81.5 x
AIR VELOCITY: max 20 m/sec
PRESSURE: max 200 mm ca
FIRE REACTION
IT CLASS:
Class 1 (D.M. 26/06/84)
Approval no.: RE1205C20D100006
EU CLASS:
INNER DUCT & VAPOR BARRIER: Class B-s1, d0 (EN 13501-1:2009)
INSULATION: Class B-s2, d0
FR CLASS:
INNER DUCT & VAPOR BARRIER: Class M1 (NF P 92-507:2004)
INSULATION: Class M1 (NF P 92-507:2004)
GREEN BUILDING
Contributes to credits from major international green building rating systems:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY
BREEAM: MAN, ENE, WST
CERTIFICATIONS
Fire reaction
Smoke non-toxicity
Thermal and acoustic absorption
APPLICATIONS
Air conditioning
Single and double flow mechanical ventilation
Reduction of condensation and heat loss
Product code: CDTPLTI.203
