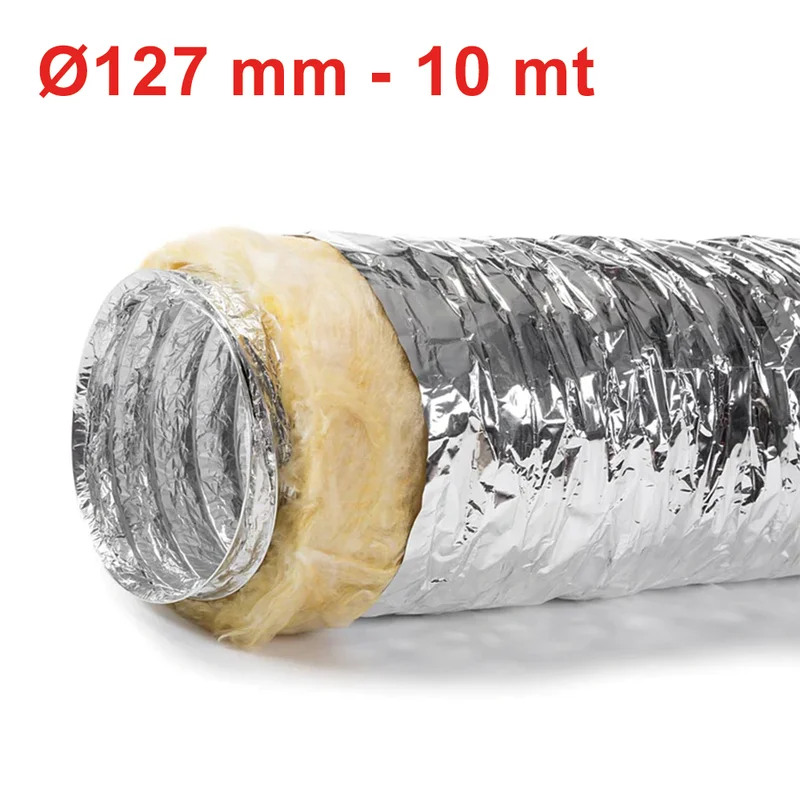

CDTALLI.127 – FLEXIBLE ALUMINIUM/PVC POLYESTER DUCT WITH SOUND-ABSORBING GLASS FIBRE INSULATION
Ø 127 mm – 10 m roll
Features:
Micro-perforated aluminium/polyester internal duct with harmonic steel spiral
Nylon vapor barrier
Glass fibre insulation with 18 kg/m³ density and 25 mm thickness
External duct in aluminium
Fire reaction class 1 (D.M. 26/06/84 art. 8)
Certification number CSI 0081/16/RF
Approval number PD2229C20D100013
Diameter 127 mm
10 m roll packaging
Operating temperature from -30 °C to +150 °C
Maximum air velocity 30 m/s
Maximum operating pressure 2,000 Pa
AL THERM
Flexible duct with AL/PET/AL wall (aluminium/polyester/aluminium) and harmonic steel wire spiral. Thermal insulation layer in polyester fibre (25 mm / 16 kg/m³). Outer protection in aluminiumized flame-retardant polyolefin film. The strength of the thermobonded polyester fibre prevents microfiber dispersion during airflow.
Insulation:
25 mm / 16 kg/m³ standard
50 mm / 16 kg/m³ on request
Thermal resistance at 20°C
R = 0.58 m² K/W (UNI EN 12664:2002)
SPECIFICATIONS
COLOR: Aluminium
LENGTHS: 10 m standard
PRODUCTION DIAMETERS: 82 to 630 mm
OPERATING TEMPERATURE: -30°C /+140°C (+180°C peaks)
BENDING RADIUS: 0.81.5 x ø
AIR VELOCITY: max 32 m/sec
PRESSURE: max 250 mm ca
FIRE REACTION
IT CLASS:
Class 1 (D.M. 26/06/84)
Approval no.: RE1205C20D100008
EU CLASS:
INTERNAL DUCT: Class B-s1, d0 (EN 13823:2010)
VAPOR BARRIER: Class B-s1, d0 (EN 13501-1:2009)
INSULATION MAT: Class B-s2, d0 (UNI EN 13501-1:2009)
MED/3.18f (2014/90/EU) Membrane for combustible ducts
FR CLASS:
Class M1 (NF P 92-507:2004)
GREEN BUILDING
Contributes to credits in major international building sustainability rating systems:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY
BREEAM: MAN, ENE, WST
CERTIFICATIONS
Fire reaction
Acoustic and thermal absorption
APPLICATIONS
Air conditioning
Ventilation
Product code: CDTALLI.127
